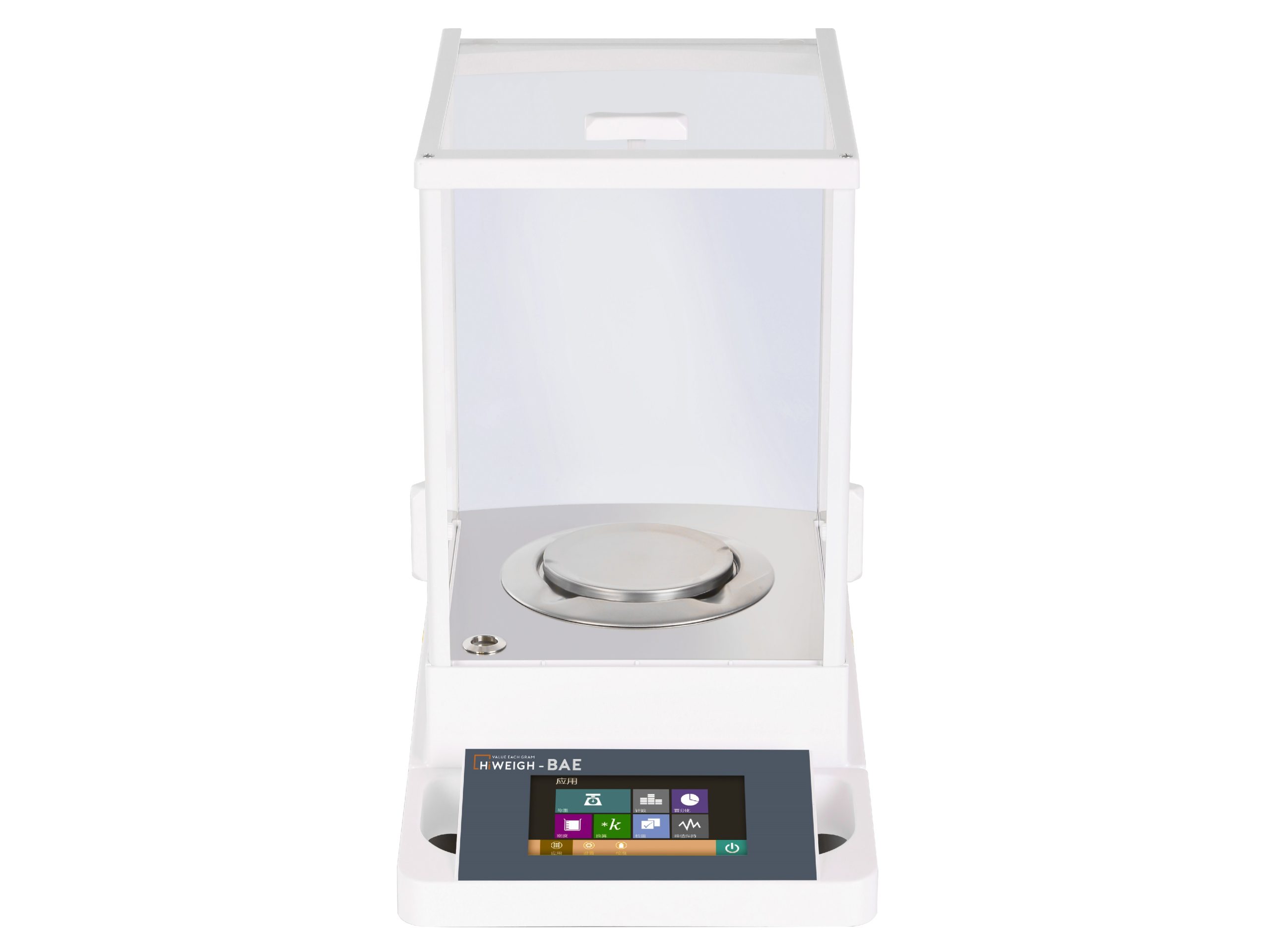

BAE Analytic Balance with Touch Display

Metro color touch display, high accuracy of 0.1mg to 1mg, and optional internal calibration system.

Category:
General Details

Features

TFT

TouchScreen

Professional desgin with touch screen
Eype-friendly Metro color interface design
Sensitive touch panel, work even with gloves
Easy for operating with a lot indicating messages
Multi functions: counting, percentage, density, etc.
RS232 interface for connecting with computer or printer
High-transparent glasses, with lock for transportation
Stainless steel weighing pan with wind shield kit
Stainless steel bubble level and adjusting feet
Special designed overloading protection for the sensor
Multi-units exchange: g/oz/lb/ct/N/ozt
Big capacity up to 520g
High precision up to 0.1mg Internal or External calibration
Optional USB interface
Optional density weighing kit

Accessories

Statistics printer – XT110
Label printer – T40
Balance Table I – 900 x 600mm
Balance Table II – 1200 x 600mm

Models

ModelsPart No.CapacityDivision
BAE124640001120g0.1mg
BAE224640002220g0.1mg
BAE523640003520g1mg
BAE124C640004120g0.1mg
BAE224C640005220g0.1mg
BAE523C640006520g1mg



Techical Info

Power
85-265V – 50/60Hz
– DC 12V 1000mA

Capacity
120g | 220g
220g | 320g | 520g

Accuracy
0.1mg | 1mg

Display
TFT

Pan Size
Dia 90mm

Units
g | oz | lb ct | N | ozt

Repeatability Error
± 1d

Calibration
External | Internal

Output
RS232

Weight
5.5kg

Order Enquiry

Contact form description text

  • 1 + 4 =
Approvals

CE
