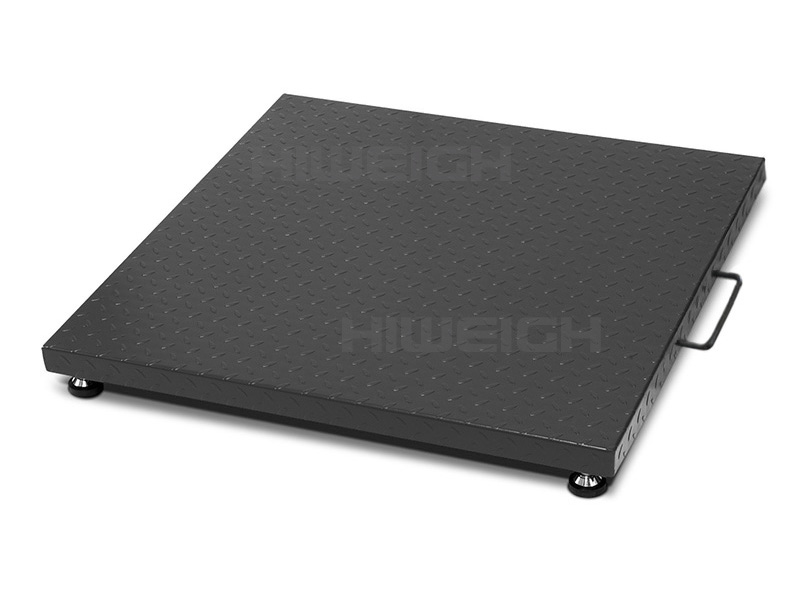

FMP floor scale

Rugged structure with checked plate. With handles for easy movement.

Category:
General Details

Platform

Rugged structure with checked plate. With handles for easy movement. 5m indicator cable with 5-pin connector -optional wireless connection. Capacity up to 1000kg. Plastic powder coated finish.

M28 | H8C LoadCell

IP67 protection, with alloy steel feet. Models1 with standard M28 load cells. Models2 with OIML/NTEP approved M28 load cells.

Optional X3A Indicator

ABS housing. Stainless steel bracket.  X3AC – models1 (CE). X3AC – models2 (CE | OIML). Rechargeable battery. Programming zero tracking. Selectable Kg/lb units. Counting function. Animal weighing. Hold function. Power saving mode. Accumulation. RS232 interface.

Accessories

ISA|MDS

Models

Part No.100373100374
Models 1FMP0810FMP1010
Part No.100375100376
Models 2FMP0810MFMP1010M
Capacity1000kg1000kg
Division0.2 | 0.5kg0.2 | 0.5kg
Size800 x 800mm1000 x 1000mm
Weight39kg50kg
Techical Info

Plaform Sizes
800 x800mm
1000 x 1000mm

Capacity
1000kg

Division
0.2 | 0.5kg

Load Cell Approval
M28 – CE
H8C – OIML|NTEP

Load Cell Protection
IP67

Operating Temperature
-10 – 40°C

Power
100-240V – 12V adaptor
Battery: 6V2.8Ah
Battery life: 24 hours

Indicator & Approval
X3AC – CE
X3AM – OIML/EC-Type

Display
X3AC – 1” FSTN LCD
X3AM – 1” LCD

Unit
Kg/lb

Output
RS232

Order Enquiry

Contact form description text

  • 8 + 13 =
Approvals

Load Cell Approval
M28N –  CE
M28 – OIML H8C – OIML | NTEP

Indicator Approval
X3AC – CE
X3AM – OIML/EC Type
