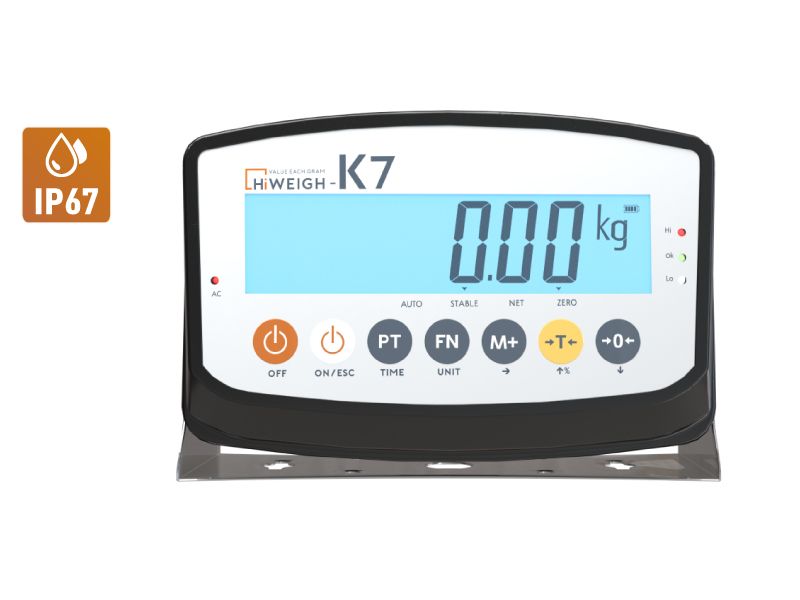

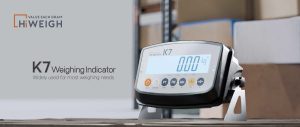

K7 weight indicator

With IP67 PBT housing. Stainless steel bracket. Big backlit FSTN LCD display, Multi-interfaces

Categories: ,
General Details

Functions

IP67 PBT housing. Stainless steel bracket. Big backlit FSTN LCD display. – the weight can be read clearly even in the sun. With rechargeable Ni-MH 6V2.5A battery. 100-240v power source directly. kg/lb, g/oz units exchange. Real-time clock and date display. Checkweigh with three LED lights. Animal weighing function, accumulating, hold. x10 accuracy,counting, zero, tare, printing, etc. Default with 2 RS232 interface. Continuous, print or Modbus output. Option of Bluetooth output. Option of WiFi output. Option of Relay output.

Models

Part No. 110001
Models K7
Housing PBT
Protection IP67
Weight 2.8kg
Techical Info

Power
100-240V AC direct cable Ni-Mh
Battery: 6V2.5Ah

Excitation Voltage
DC5V
1-4 * 350Ω load cells
1-8 *700Ω load cells

Analog Input Signal
±10mV

A/D Resolution
1,000,000

A/D Rate
10 times/second

Display Resolution
1/3,000 – 1/30,000

Display
FSTN LCD – 37mm

Units
Kg | lb | g | oz

Output
RS232 * 2
Optional Bluetooth
Optional WiFi

Operating Temperature
-10°C – 40°C

Storange Temperature
-25°C – 55°C

Protection
IP67
Weight
2.8kg

Order Enquiry

Contact form description text

  • 9 + 79 =
Approvals

CE
