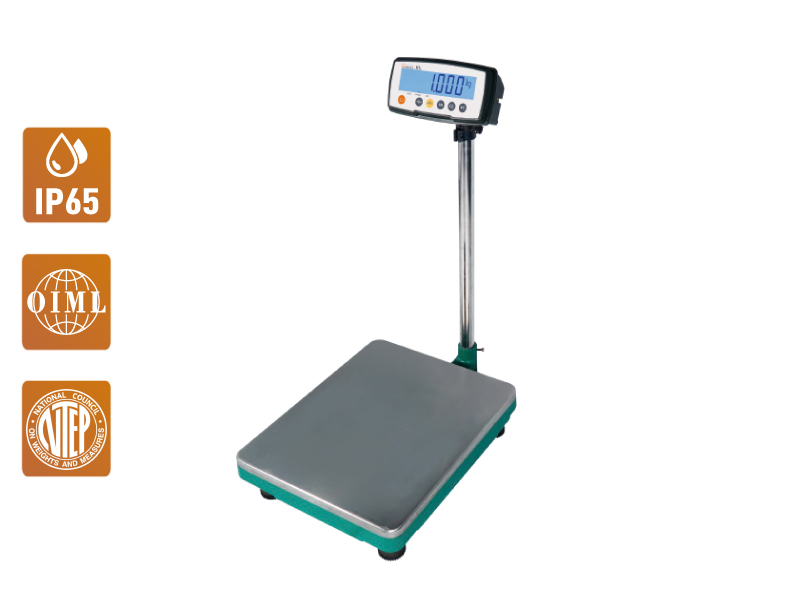

BSD Heavy-duty Aluminum Platform Scale
300kg platform scale with cast aluminum platform, SUS304 stainless steel pole and weighing pan, and IP65 load cell. The IP67 LCD display can be powered via 5v USB-C.
Weighing Platform
- Capacity up to 300kg, suitable for heavy-duty weighing
- Aluminum cast platform platform, lightweight yet robust for long-term use
- 304 stainless steel pole & pan, hygienic, corrosion-resistant construction
- IP65 load cell, reliable in dusty and damp environment
- Four anti-slip adjusting feet
- Overload protection
K1C Indicator
- Adopt double O-rings to seal the housing, and equipped with air and moisture vent, the ingress protection is IP67.
- Powered by the 5V USB-C interface, no worry about AC/DC adapter broken or lost, you can use mobile phone charger to charge the indicator.
- 1.5″ backlit LCD screen
- The display window is protected by PMMA to avoid being damaged by sharp objects.
- The front case can be assembled in two directions to better read the weight of the platform scale.
- K1C comes with a stainless steel bracket by default, which can be installed on the platform weighing pole.
- The K1C back case also has rubber stands, which can be placed directly on the desktop.
Functions
- Counting
- Animal
- Over/Under
- Accumulate
- Dynamic
- Peak Hold
- Printing
- x10 accuracy
- Classifying
- Multi range selectable
- Linearity calibration selectable
- Multi communication protocols
Optional
- Bluetooth
- Bluetooth with app
- WiFi
- RS485
- 4-20mA
- USB
Models
| Model | Part No. | Size | Capacity | Division | IP |
| BSD4030 | 620221 | 420x520mm | 30kg | 2g | IP65 |
| BSD4060 | 620222 | 60kg | 5g | ||
| BSD4150 | 620223 | 150kg | 10g | ||
| BSD4300 | 620224 | 300kg | 20g |
Applications
- Food industry: The stainless steel weighing pan ensures hygiene and is easy to clean.
- Pharmaceutical and Chemical Plants: Corrosion-resistant and suitable for precise weighing.
- Logistics and Warehousing: Efficient handling of packages, materials and bulk goods.
- Manufacturing and Assembly Lines: Eighing parts, components, and products.
- Retail and Commercial Use: Suitable for wholesale markets, distribution centers and stores.
FAQ
- Is it suitable for mobile or outdoor use?
With a lightweight aluminum platform and USB-C charging, it can be easily relocated and powered via adapters or power banks.
- How should the industrial platform scale be maintained?
Simply wipe the stainless steel pan with a damp cloth after use. Avoid high-pressure washing and recharge via USB-C regularly.
Power
5V USB-C charger
3.7V4Ah Li-ion Battery
Optional 100-240V AC
Material
Aluminum alloy structure
SUS304 S.S. cover and pole
Display
FSTN 1.5″ LCD
Capacity
30/60/150 kg
Division
2/5/10/20g
Units
kg/lb
Output
RS232*1
Load Cell
M17
Load Cell Protection
IP65
Indicator Protection
IP67
Platform Size
420x520mm
Operating Temperature
-10°C-40°C
Contact form description text
CE
AGU Plastic Steel Platform Scale
The platform features a steel-reinforced plastic base and a SUS304 stainless steel top cover, providing both strength and corrosion resistance.
BSK Aluminum Alloy Platform Scale
The new BSK platform scale adopts an aluminum alloy platform, SUS304 stainless steel pan and pole, heavy-duty design, can bear a load of up to 500kg, and has overload protection function.

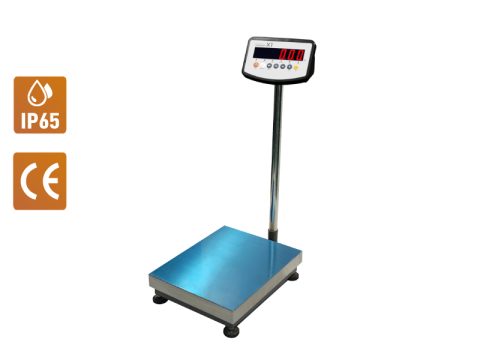

AKX Economy Platform Scale
