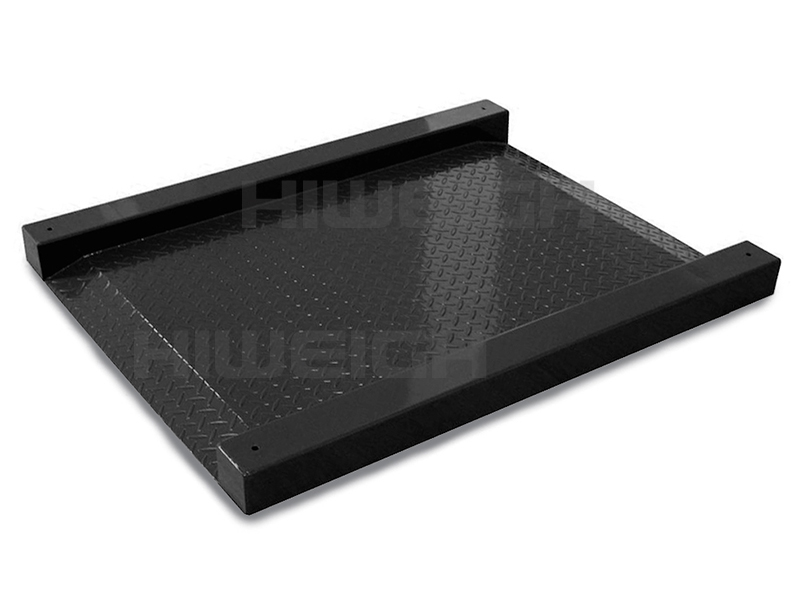

FDX floor scale
Low profile platform with checked plate. In and out ramps (200mm). With handle and castors for easy movement.
Low profile platform
Low profile platform with checked plate. In and out ramps (200mm). Optional handle and castors for easy movement. 5m indicator cable with 5-pin connector -optional wireless connection. Capacity up to 2000kg. Plastic powder coated finish.
M28|H8C Load Cell
IP67 protection, with alloy steel feet. Models1 with standard M28 load cells. Models2 with OIML approved H8C load cells.
X3A Indicator
ABS housing. Stainless steel bracket. X3AC – models1 (CE). X3AM – models2 (CE | OIML). Rechargeable battery. Programming zero tracking. Selectable Kg/lb units. Counting function. Animal weighing. Hold function. Power saving mode. Accumulation. RS232 interface.
Accessories
ISA|MDS
Models
| Part No. | 100333 | 100334 | 100335 | 100336 | 100337 | 100338 |
| Models 1 | FDX1010 | FDX1020 | FDX1210 | FDX1220 | FDX1510 | FDX1520 |
| Part No. | 100339 | 100340 | 100341 | 100342 | 100343 | 100344 |
| Models 2 | FDX1010M | FDX1020M | FDX1210M | FDX1220M | FDX1510M | FDX1520M |
| Capacity | 1000kg | 2000kg | 1000kg | 2000kg | 1000kg | 2000kg |
| Division | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg | 0.2 | 0.5kg | 0.5 | 1kg |
| Size | 1000x1000mm | 1200x1200mm | 1500x1500mm | |||
| Weight | 105kg | 125kg | 145kg | |||
Plaform Sizes
1000 x 1000mm
1200 x 1200mm
1500 x 1500mm
*optional 800 x 800mm
Capacity
500 – 2000kg
Display Resolution
1/2,000 – 1/5,000
Load Cell Approval
M28 – CE
H8C – OIML|NTEP
Load Cell Protection
IP67
Operating Temperature
-10 – 40°C
Power
100-240V – 12V adaptor
Battery: 6V2.8Ah
Battery life: 24 hours
Indicator & Approval
X3AC – CE
X3AM – OIML/EC Type
Display
X3AC – 1” FSTN LCD
X3AM – 1” LCD
Unit
Kg/lb
Output
RS232
Contact form description text
Load Cell Approval
M28N – CE
M28 – OIML
H8C – OIML | NTEP
Indicator Approval
X3AC – CE
X3AM – OIML/EC Type
