M28 M28M Shear Beam Load Cell
With a maximum capacity of up to 10 tons, M28 is suitable for truck scales, weighing beams, tank weighing systems, and batching equipment. CE and OIML/NTEP certified versions are available.
M28 M28M shear beam load cell is widely used in heavy-duty industrial weighing applications. Manufactured from high-quality alloy steel, it offers excellent mechanical strength, long-term stability, and reliable performance under harsh operating conditions.
Features
- High Capacity up to 10 Tons
Designed for heavy-duty industrial and commercial weighing applications.
- Alloy Steel Construction
High strength, excellent fatigue resistance, and long service life under repeated loading.
- Available with OIML & NTEP Certification
M28-CE | M28M-OIML/NTEP
Certified version suitable for legal-for-trade and regulated weighing applications.
- Same Structure for Certified & Standard Versions
Identical mechanical design and dimensions, simplifying system integration and replacement
- Optional rubber pads for leveling feet
Helps compensate for minor installation misalignment and improves load distribution.
- Stable Performance in Harsh Environments
Suitable for outdoor, industrial, and semi-harsh operating conditions.
- Default cable length is 4m, diameter is 5mm (Optional customized longer cable)
- Interchangeable with below models: HBM* HLC, Mettler Toledo* SLP215, Tedea-Huntleigh* 3410/3411, Revere*9123, Zemic* H8C, Flintec* SB9
Models
| Part No. | 120101 | 120102 | 120103 | 120104 | 120105 | 120106 | 120107 | 120108 | 120109 |
| M28 | 100kg | 250kg | 500kg | 1000kg | 1500kg | 2000kg | 2500kg | 5000kg | 10000kg |
| Part No. | 120110 | 120111 | 120112 | 120113 | 120114 | 120115 | 120116 | 120117 | 120118 |
| M28M | 100kg | 250kg | 500kg | 1000kg | 1500kg | 2000kg | 2500kg | 5000kg | 10000kg |
| Part No. | 120119 | 120120 | 120121 | 120122 | 120123 | 120124 | 120125 | 120126 | 120127 |
| M28M | 500lb | 1klb | 2klb | 4klb | 5kSE | 5klb | 7.5klb | 10klb | 20klb |
| Class | C3 | ||||||||
| IP | IP67 | ||||||||
Applications
- Floor scales
- Weighing beams
- Tank and silo weighing systems
- Batching and mixing systems
- Industrial platform scales
- Process control and material handling systems
FAQ
- What is the function of the optional rubber pad?
The rubber pad helps compensate for minor installation misalignment and improves load distribution, especially on uneven foundations.
- Is this load cell suitable for outdoor use?
Yes. The alloy steel construction and robust design make it suitable for outdoor and industrial environments.
Capacity
100-10000kg
500lb-20klb
Sensitivity
2.0 ± 0.002mV/V
3.0 ± 0.003mV/V
Accuracy
C3 | C4 | C5
Combined Error
≤0.02%FS
Zero Balance
± 1% Emax
TE* Zero
0.02%FS/10℃
TE* Sensitivity
0.02%FS/10℃
Input Resistance
380 ± 5Ω
Output Resistance
350 ± 2Ω
Insultation Resistance
≥5000mΩ(50VDC)
Opearting Tem Range
-35…70℃
Non-linearity
± 0.02% Emax.
Repeat
± 0.01% Emax.
Overload Limitation
200% F.S.
Recommended Excitation
5-12VDC
Protection
IP68
Contact form description text
CE/NTEP/OIML
M13 M13M Single Point Load Cell
OIML approved. Aluminum alloy material. The most popular single point load cell being used in the table top scales, counting scales, price computing scales and other retail scales.
M15 M15M Single Point Load Cell
M15 | M15M with OIML approval. Aluminum alloy material. Max. capacity up to 400Kg, a good load cell for the bench scales and weighing platforms.

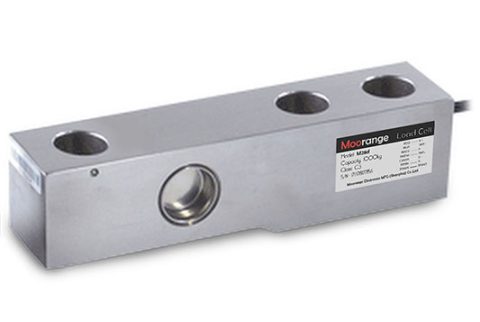

M28i M28d shear beam Load Cell
