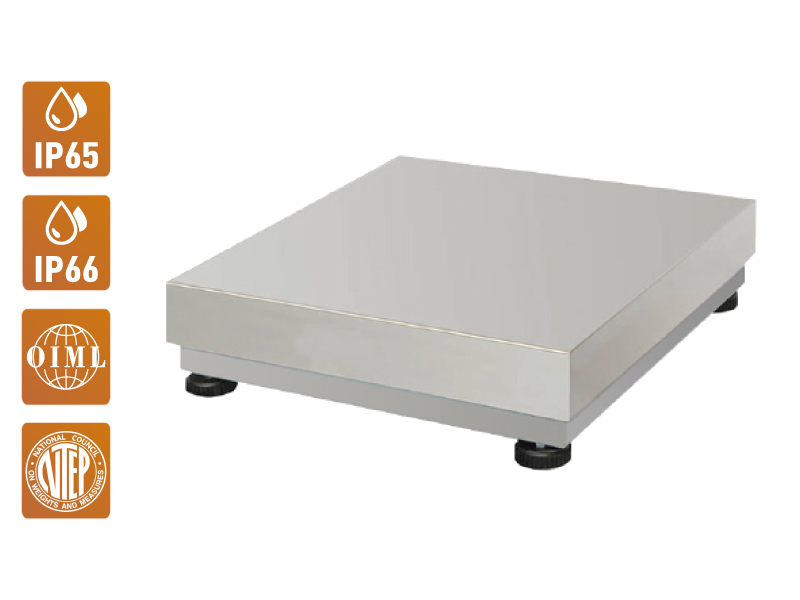

BSB Stainless Steel Weighing Platform
General Details
Details
- Capacity up to 600kg
- Rubber supporters and four anti-slip adjusting feet
- OIML/NTEP approved load cells

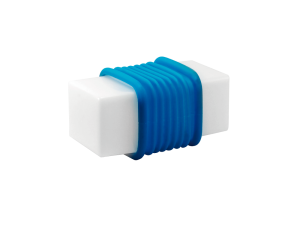

- M*C or M*SC load cell shields
– (Waterproof, insect-proof or anti-rodent) - Overload protection
- Polishing finish, optional sand blasting process
- Provide customized platform size
Models
| Model | Part No. | Size | Capacity | L.C.Cert | IP |
| BSB3006 | 620113 | 300x300mm | 6kg/13lb | OIML NTEP | IP66 |
| BSB3015 | 620114 | 300x300mm | 15kg/33lb | ||
| BSB3030 | 620115 | 300x300mm | 30kg/66lb | ||
| BSB4030 | 620116 | 400x400mm | 30kg/66lb | ||
| BSB4060 | 620117 | 400x400mm | 60kg/132lb | ||
| BSB4150 | 620118 | 400x400mm | 150kg/331lb | ||
| BSB6060 | 620119 | 600x600mm | 60kg/132lb | OIML | |
| BSB6150 | 620120 | 600x600mm | 150kg/331lb | ||
| BSB6300 | 620121 | 600x600mm | 300kg/661lb | ||
| BSB8150 | 620122 | 800x800mm | 150kg/331lb | ||
| BSB8300 | 620123 | 800x800mm | 300kg/661lb | ||
| BSB8600 | 620124 | 800x800mm | 600kg/1323lb |
Techical Info
Platform Size
300 x 300mm | 400 x 400mm
600 x 600mm | 800 x 800mm
Structure
SUS304 Stainless Steel Tubes
Pan
SUS304 Stainless Steel Plate
Capacity
6 – 600kg
Protection
IP65 – load cell
IP66 – with shield
Load Cell
L6D – 300 x 300mm
L6E – 400 x 400mm
L6G – 600 x 600mm
L6G – 800 x 800mm
Approval
CE
OIML
Order Enquiry
Contact form description text
Approvals
CE | OIML
Download
