K9T IP68 & IP69K Scale for Hygienic Weighing

K9T heavy-duty waterproof bench scale combines our most advanced platform with K9 indicator to deliver exceptional performance and durability.

Category: Platform Scale

General Details

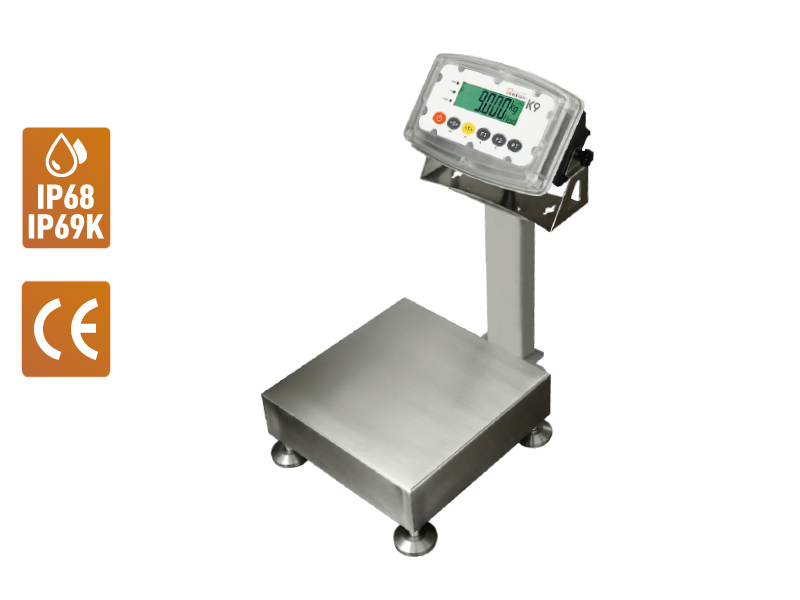

HiWEIGH K9T IP68 IP69K Stainless Steel Platform Scale

The HiWEIGH K9T is a stainless steel platform scale equipped with the IP68/IP69K K9 waterproof weighing indicator. Designed for wet, frequently cleaned and demanding industrial environments, it combines hygienic weighing construction with reliable weight display and system communication.

With stainless steel platform options, protected load cell configurations and dual RS232 communication, the K9T is suitable for food processing, washdown areas, industrial weighing and weighing systems that require data transfer to external equipment.

Stainless Steel Platform for Washdown Weighing

The K9T platform is designed for applications where cleaning, drainage and corrosion resistance are important.

SUS304 or SUS316 stainless steel platform
Food-grade stainless steel material options
Open flat-steel construction for improved drainage
Helps reduce water accumulation during cleaning
Four anti-slip stainless steel adjusting feet
Overload protection
Shock-absorbing design to protect the load cell
Customized platform sizes available

The open platform construction supports drainage during washdown and helps reduce areas where water or contaminants may collect. SUS304 and SUS316 options are available for different hygiene and corrosion-resistance requirements.

K9 IP68/IP69K Waterproof Weighing Indicator

The K9 indicator provides the weighing display, protection and communication functions of the K9T platform scale.

Its IP68 and IP69K protection makes it suitable for wet environments and frequent cleaning. The sealed housing is designed to protect the indicator during demanding industrial use.

IP68 and IP69K protection
Double O-rings for improved housing sealing
Independent PBT back case
Transparent PC alloy front cover
Integrated front panel
Capacitive touch buttons
Dual RS232 interfaces
Optional Bluetooth and WiFi
Multi-communication functions for weighing system integration

IP68 IP69K Load Cell

The K9T can be configured with stainless steel load cells suitable for demanding weighing environments.

OIML-certified stainless steel load cell
17-4PH stainless steel material
IP68 & IP69K protection
Easy cleaning with water
Shock-absorbing protection
Suitable for wet and frequently cleaned weighing areas

The suitable load cell protection level should be selected according to the actual cleaning method and working environment.

Communication and System Integration

The K9T can be used as part of a wider weighing or production system. The K9 indicator provides dual RS232 interfaces as standard, allowing weight data to be transferred to compatible external equipment.

Typical applications include:

Computer-based weighing software
PLC and industrial control systems
Production data collection
Industrial automation
Weight recording and data logging
Traceable weighing systems
Customized software and system integration

Before integration, confirm the required interface, communication settings, data format and transmission mode with the receiving system.

Applications

The K9T is suitable for weighing applications that require stainless steel construction, washdown protection and reliable weight communication.

Meat, poultry and seafood processing
Food and dairy production
Hygienic packaging lines
Washdown weighing areas
Pharmaceutical and clean production environments
Chemical mixing and filling
Industrial material weighing
Production data collection
Weighing system integration

Models

Model	Part No.	Size	Capacity	Division	IP
K9T3006	620260	300x300mm	6kg	1g	IP68 & IP69K
K9T3015	620261		15kg	2g
K9T3030	620262		30kg	5g
K9T4030	620263	400x400mm	30kg	5g
K9T4060	620264		60kg	10g
K9T4150	620265		150kg	20g
K9T5030	620266	400x500mm	30kg	5g
K9T5060	620267		60kg	10g
K9T5150	620268		150kg	20g

FAQ

Can the K9T withstand frequent washdown?

The K9 indicator provides IP68 and IP69K protection. The platform is made from SUS304 or SUS316 stainless steel and uses an open construction to support drainage during cleaning. The complete configuration should be selected according to the actual washdown conditions.

Is the K9T suitable for food processing?

Yes. The stainless steel platform, drainage-friendly construction and waterproof K9 indicator make the K9T suitable for many food processing and washdown weighing applications. The final material and configuration should be selected according to the hygiene and cleaning requirements of the application.

Can the platform size be customized?

Yes. Customized platform sizes are available for projects with specific installation or weighing requirements. Please provide the required platform dimensions, capacity and working environment.

How do I select the correct K9T configuration?

Please provide the required capacity, platform size, material preference, cleaning conditions and communication requirements. HiWEIGH can help confirm the suitable platform, load cell and indicator configuration.

Techical Info

Power
100-240V 50/60Hz AC
9-24V DC
7.4V6800mA or 6V1200mA

Display Resolution
1/3,000 – 1/15, 000

Platform Sizes
300 x 400mm | 400 x 400mm
400 x 500mm

Capacity
6 – 150kg

Protection
IP68 | IP69K

Display
FSTN multi-color – 30mm

Units
Kg/lb/g/oz

Output
RS232 x 2
Optional Bluetooth or WiFi

Operating Temperature
-10°C – 40°C

Order Enquiry

Need a Waterproof Platform Scale for Your Application?

The K9T is designed for industrial weighing applications that require more than a standard platform scale. It combines a stainless steel weighing platform with the IP68/IP69K K9 indicator, providing washdown protection, reliable weighing and flexible communication options.
