TSC Concrete Truck Scale | Weighbridge
Robust TSC concrete truck scale made of I beams structure - with 10 years warranty, installed with OIML approved load cells.

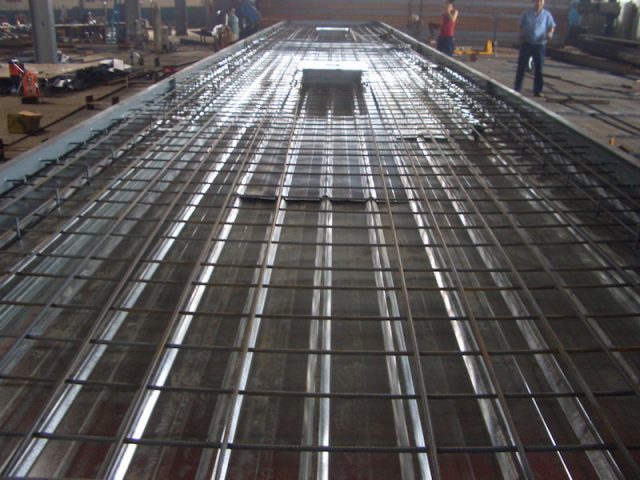

I beams Module Structure
Stronger I beams structure, with steel bars. Modules design for easy loading in truck or container.
Concrete Platform*
Longer time for operation, not worry of rust any more.
With adjusting cabinet *concrete not included in the shipping list.
Easy Installation
Easy installation, labor work saving
PLATFORM
Structure designed with H beams. Modules design for container/truck load. Width of 3m or 3.4m option. Length from 16m to 24m* * other length customized demand * concrete not included in the shipping list.
LOAD CELL
OIML approved M36i column load cell. Stainless steel material.Hermetically sealed, IP68 . Optional HM9B model.
INDICATOR
S.S housing with IP65 protection. 240×128 dot matrix LCD. High accuracy up to 10,000e. Anti-vibration and anti-surge design. Easy to operation with big LCD display. Multi interface: RS232, RS485, Erthernet, etc. Super anti-interference technology. Analog or digital working mode for choice.
Models
| Part No. | 410023 | 410024 | 410025 | 410026 |
| Models | TSC316 | TSC318 | TSC321 | TSC324 |
| Capacity | 80Ton | 100Ton | 100Ton | 120Ton |
| Division | 20kg | 20kg | 20kg | 20kg |
| Platform size | 3x16m | 3x18m | 3x21m | 3x24m |
| Part No. | 410027 | 410028 | 410029 | 410030 |
| Models | TSC3416 | TSC3418 | TSC3421 | TSC3424 |
| Capacity | 80Ton | 100Ton | 100Ton | 120Ton |
| Division | 20kg | 20kg | 20kg | 20kg |
| Platform size | 3.4x16m | 3.4x18m | 3.4x21m |
POWER
100-240V (50-60Hz)
PLATFORM SIZE
Width – 3 or 3.4m
Length – 16 to 24m
CAPACITY
100/120t
ACCURACY
20kg
UNITS
Kg, t
OUTPUT
RS232
RS485
RJ45 (optional)
SD card (optional)
COMMUNICATION
Continous
Print
Modbus-RTU
Modbus-TCP
