W5 table weigh scale

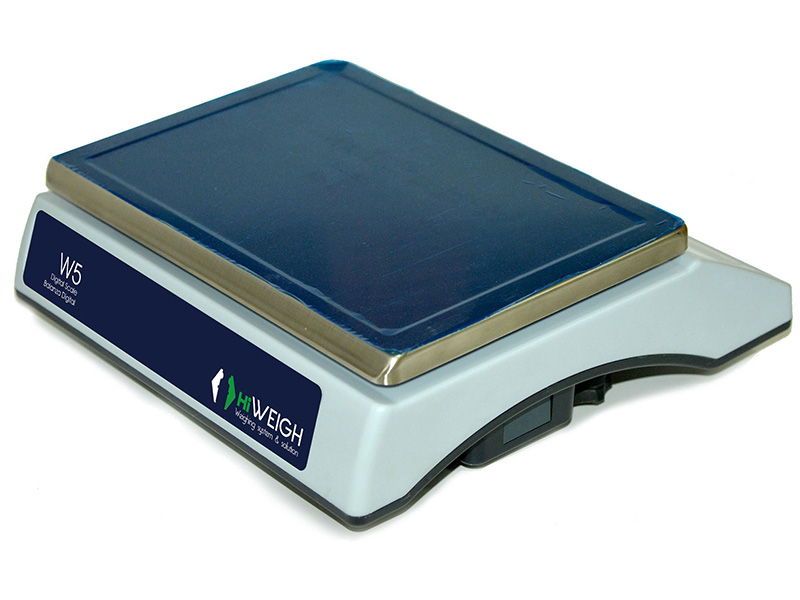

Rugged ABS housing. Stainless steel pan 310x220mm. Bright green LED display.
Features

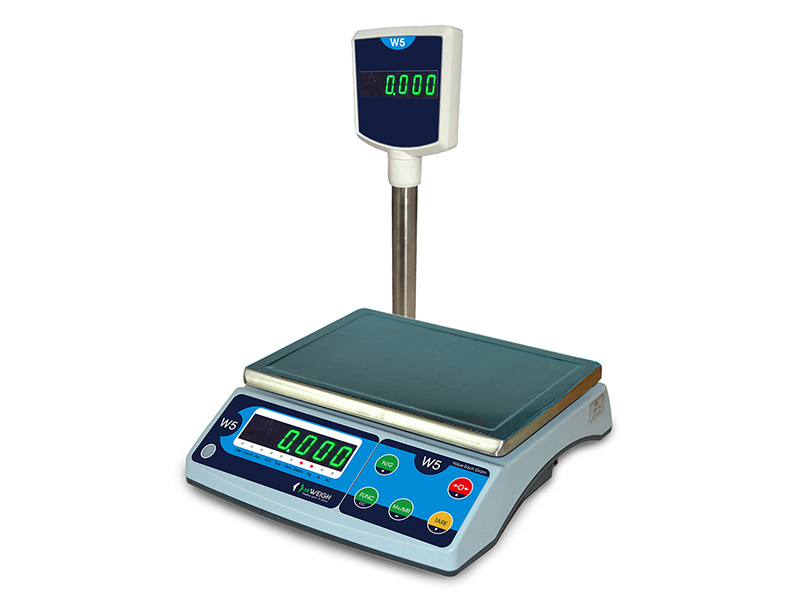

Rugged ABS housing. Stainless steel pan 310x220mm. Bright green LED display. W5*H model with pole display. Rechargeable 6V battery. High accuracy of 1/15,000. Aluminum load cell supporter. Five operating keys. Counting function. Zero/Tare function. Accumulation function. Display speed adjust. Display brightness adjust. Liter conversation factor. Auto power off. RS232 optional.
Models
| Part No. | 100866 | 100867 | 100868 | 100869 |
| Models | W503 | W506 | W515 | W530 |
| Capacity | 3kg | 6kg | 15kg | 30kg |
| Division | 0.2g | 0.5g | 1g | 2g |
| Pole Display | No | |||
| Pack Size | 75x45x34cm(4pcs) | |||
| Weight | 17kg(4pcs) | |||
| Part No. | 100870 | 100871 | 100872 | 100873 |
| Models | W503H | W506H | W515H | W530H |
| Capacity | 3kg | 6kg | 15kg | 30kg |
| Division | 0.2g | 0.5g | 1g | 2g |
| Pole Display | Yes | |||
| Pack Size | 78x45x35cm(4pcs) | |||
| Weight | 21kg(4pcs) | |||
Power
100-240V – 12V1A adaptor
Rechargeable Battery: 6V4Ah
Pan Dimensions
310 x 220mm
Capacity
3 | 6 | 15 | 30Kg
Display Resolution
1/15,000
Internal Resolution
200,000
Display
LED (green)
Units
Kg | lb | Liter
Non-linearity
≤0.01%F.S.
RS232
Optional
Net Weight
3.8Kg
Operating Temperature
-10°C – 40°C
Storage Temperature
-25°C – 55°C
Relative Humidity
≤80% non-condensing
Contact form description text
CE
