XM6 Wheel Weighing Indicator
The wheel weighing indicator is designed for portable axle scales and vehicle weighing systems, providing accurate measurement of wheel and axle loads.
General Details
Specifications

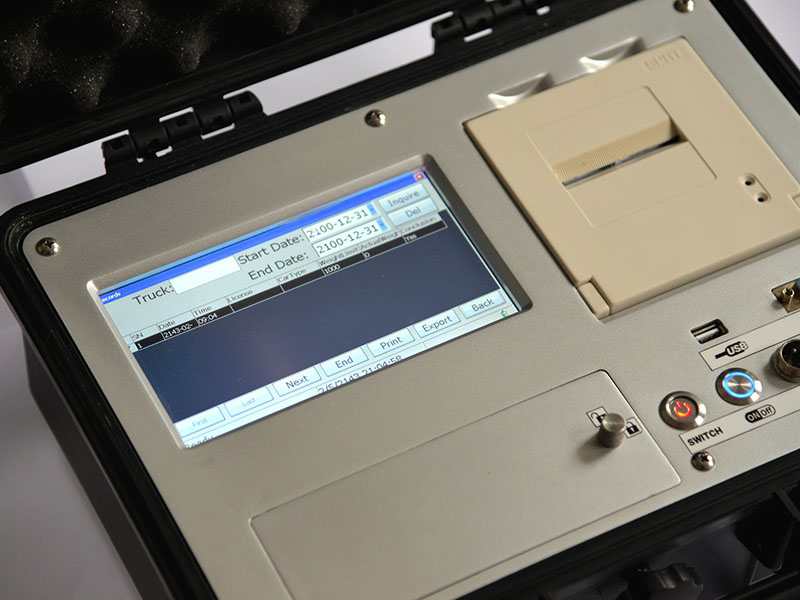

- 8” Touch Screen

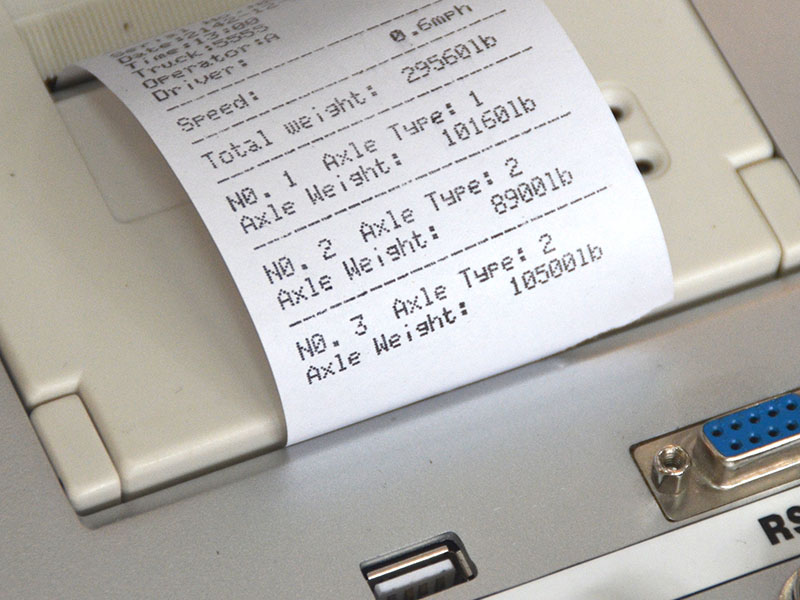

- High speed thermal Printer
- Dynamic working mode – XM6D
- Static working mode – XM6S
- Wireless connection – XM6*FM
- Standby working 40 hours with battery
- Unlimited weighing records
- Base on Windows CE 6.0* system
- FREE Program upgrade
- 2 Channels system as default
- 4 / 6 / 8 channels system are optional. RS232, USB 2.0 as default
- Wireless edition – USB 2.0 & WIFI as default
- 30m working distance for wireless version
- Display of weight of each wheel
- Display of weight of each axle
- Display of total truck weight
- Excel, text or Database file output
- Multi-languages support (default-English)
- 4 Cores ARM CPU

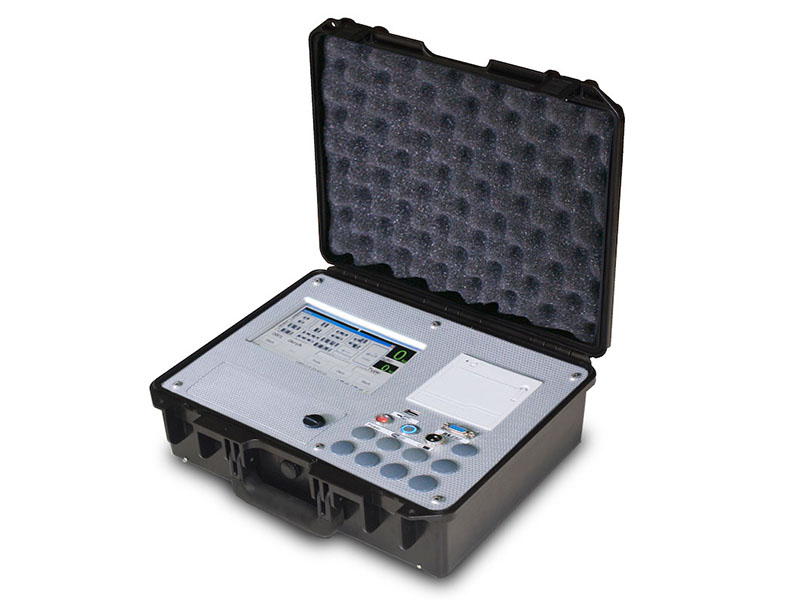

- Rugged ABS suitcase
- 2GB memory with 4GB hard disk
- SMS message and other application optional
Models
| Part No. | 110063 | 110064 | 110065 | 110066 |
| Models | XM6 | XM6-4 | XM6-6 | XM6-8 |
| Wheels | 2 | 4 | 6 | 8 |
| Work Mode | Dynamic I Static | Static | Static | Static |
| Weight | 5.5kg | 5.5kg | 5.6kg | 5.6kg |
Techical Info
Power
120V/240V AC/DC adaptor
Rechargeable Battery: 6V10Ah
Estimated Battery Life: 40 hours
Charge Time: 8 Hours
Excitation Voltage
DC5V±2%
Analog Input Signal
-1 – 10mV
Sampling Speed
200 times/second
Non-Linearity
< 0.01%
Power Consumption
70mA – standby
1000mA – printing
Display
8” TFT
Units
Kg | lb
Output
RS232
USB
Bluetooth (optional)
WiFi (optional)
Operating Temperature
0°C – 40°C
Storange Temperature
-25°C – 55°C
Relative Humidity
≤80% non-condensing
Temp. Coefficient
5ppm/°C
Protection
IP54 Approval CE
Packing Size
51*35*22cm
Packing Weight
6.7kg
Order Enquiry
Contact form description text
Approvals
CE
